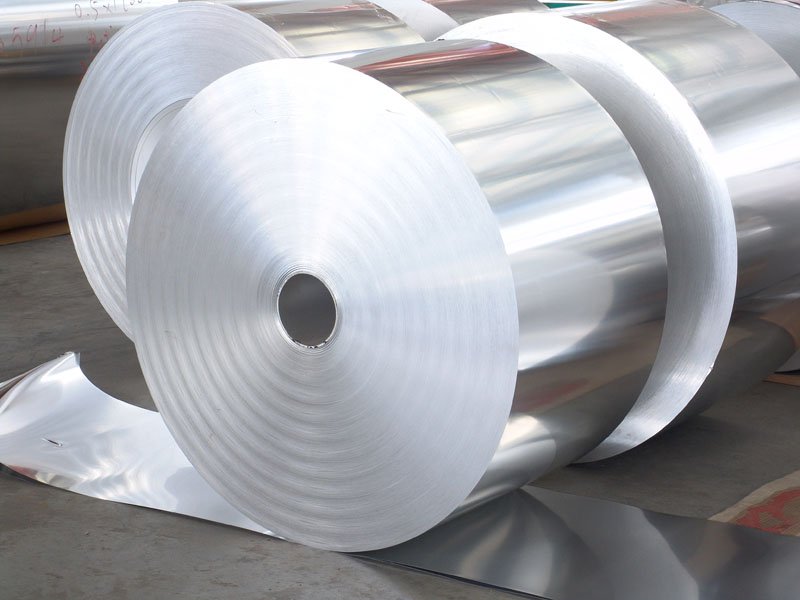

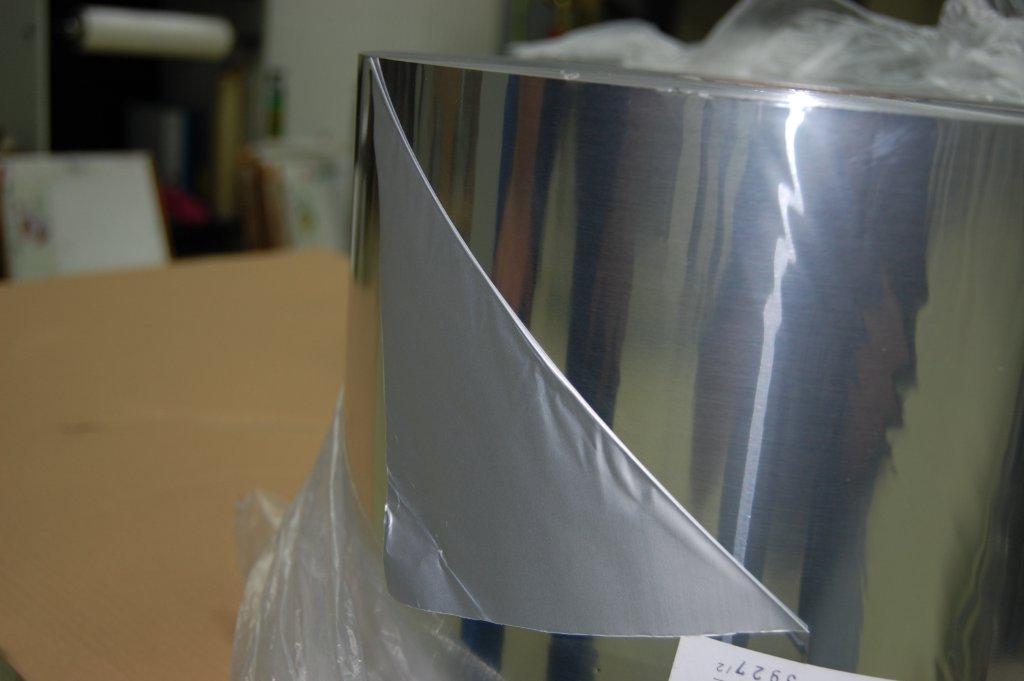

Aluminium Hot Seal Foil

Specification

Alloy: 1235, 1200, 8011
Temper: O
Thickness: 0.02~0.08mm
Width: 100~1220mm
Coil ID: 75, 150
surface finishing: both sides brightone side bright, one side matte

Chemical Compositions

Alloy Fe Si Cu Mn Mg Cr Zn Ni Ti Other Al
Each Total
1200 1 0.05 0.5 - - 0.1 - - 0.05 0.15 99
1235 0.65 0.05 0.05 0.05 - 0.1 - 0.06 0.05 0.15 99.35
8011 0.6~1.0 0.50~0.9 0.1 0.2 0.05 0.05 0.1 - 0.08 0.05 0.15 Remains

Tensile Strength Property

Alloy Temper Thickness (mm) Test under room temperature
Tensile Strength Rm/(N/mm2) Elongation %(>=)
A50mm A100mm
1200 O 0.02~0.04 50~105 - 3
0.041~0.08 55~100 - 6
1235 O 0.02~0.04 45~100 - 2
0.041~0.08 45~100 - 4
8011 O 0.02~0.04 55~110 - 4
0.041~0.08 60~110 - 8

As a robust and non-corrosive material, aluminium foil has played a key role in the packaging of dairy products. Alufoil helps to retain essential quality, condition and taste until the moment of use.

Milk, cream and yoghurts packaged in sterile cartons makes it possible to preserve their intrinsic properties, without refrigeration, due to a very thin layer of aluminium foil. These long-life packs are impervious to light, odour and gases, while at the same time providing a crucial barrier to light and oxygen and the preservation of essential vitamins. Such aseptic cartons are lightweight and designed for efficient transportation, storage and on-shelf display. Most importantly, without the need for refrigeration due to the alufoil layer, considerable savings in energy resources along the supply chain can be achieved.

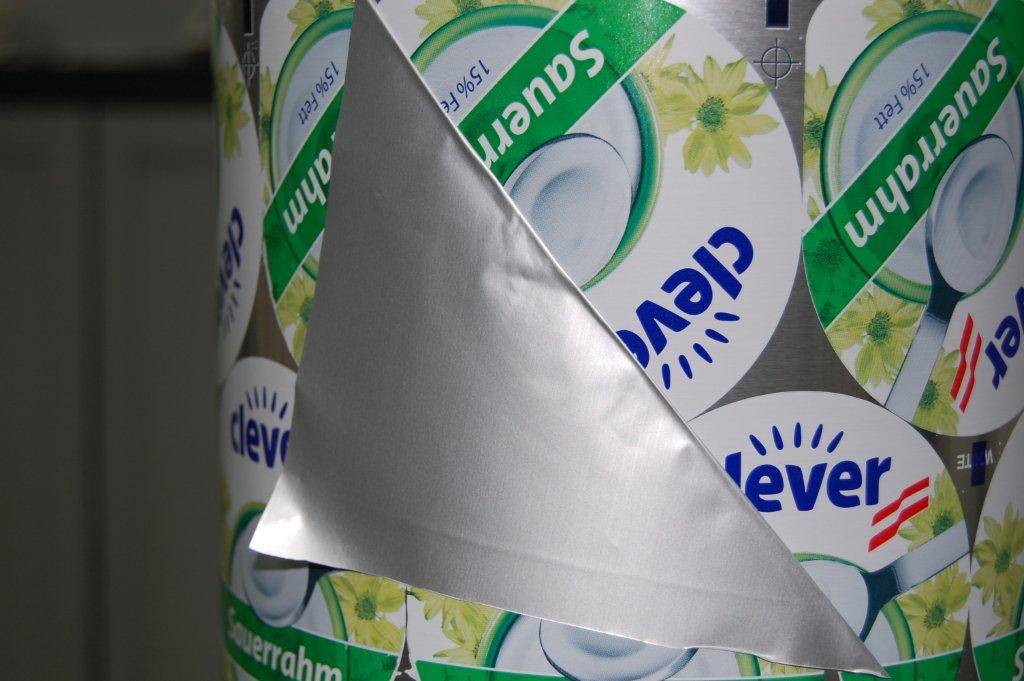

The compatibility of aluminium foil with heat-seal lacquers, coupled with the metal’s excellent heat conductivity and stability, makes it the ideal material for capping and heat-sealing of all types of plastic milk containers. Whether the milk is fresh, aseptically filled or sterilised in the container, the foil/coating combination can be designed to meet the demands of processing and distribution. A foil diaphragm solves the problem of achieving a reliable screw-top closure for blow-moulded milk bottles. This is heat-sealed to the bottle opening using induction heating. Only the metal foil becomes heated by a high frequency electro-magnetic field which is applied after filling and capping. Although reliably sealed, the foil can be peeled away cleanly thanks to coatings that combine seal strength with peelability.
