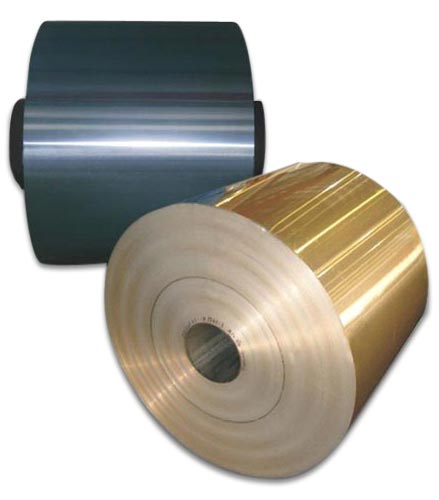

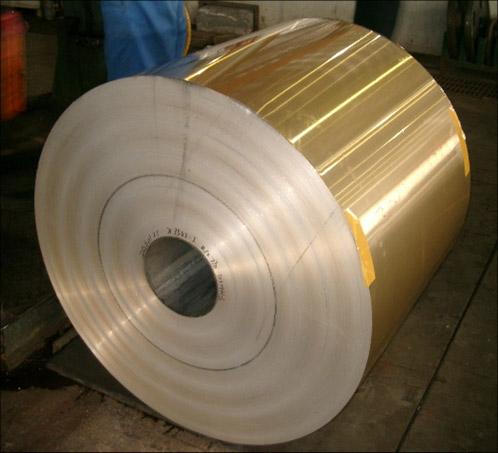

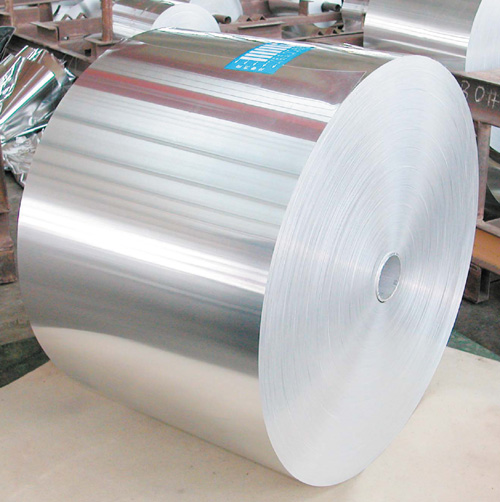

Aluminium Hydrophilic/Plain Fin Stock Foil


Alloy: 1100, 8011
Temper: O, H18, H22, H24, H26
Thickness: 0.08~0.20mm
Width: 100~1240mm
Coil ID: 75, 150, 505

Chemical Compositions

Alloy Fe Si Cu Mn Mg Cr Zn Ni Ti Other Al
Each Total
1100 0.95 0.05~0.20 0.05 - - 0.1 - - 0.05 0.15 99
8011 0.6~1.0 0.50~0.9 0.1 0.2 0.05 0.05 0.1 - 0.08 0.05 0.15 Remains

Mechanical Properies

Aolly,temper and mechanical performance under room temperature
Alloy Temper Mechanical performance under room temperature
Tensile(∮b, Mpa) Elongation(e%) Erichson(IE,mm)
1100, 8011 O 80-110 >20 >6.0
H22 100-135 >16 >5.5
H24 115-145 >12 >5.0
H26 125-160 >8 >4.0
H18 >160 >1 --
Re:if customers have special requirements,pls indicate them in purchase order

Usually supplied specification

Thickness  and tolerance  Width and  tolerance (mm) Core ID (mm) Max OD for Finish  products (mm) Core material
0.08~0.02 (+/-0.005) 100~1100(+/-0.5) ∮75, ∮150, ∮</=1400 Paper,aluminium,steel

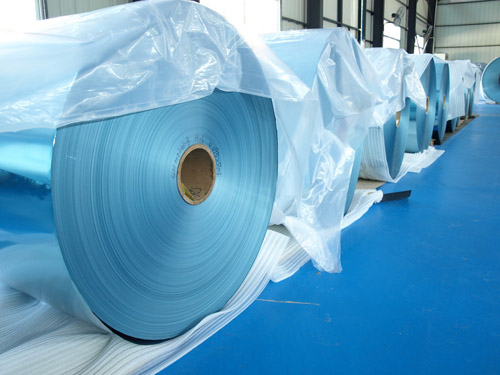

The hydrophilic foil has a layer coating material, which has the performance of high corrosion resistance, no white powder, no pollution, without water bridge, high heat exchange effciency, reducing windage, save energy and so on. The hydrophilic fins improve the heat exchange by absorbing the water on its surface and by spreading the water instead of forming water droplets. Coated finstock have more advantages compared to conventional finstock because of its hydrophilic and corrosion resistant properties. These are in high demand as they increase the efficiency of heat exchangers and capacity of cooling equipment such as air conditioners which can now come in smaller, compact sizes. The range of coated finstocks are available in organic series, inorganic series and hybrid series. Other sizes and customized solutions are available.
