Aluminium Pharmaceutical Foil

Pharmaceutical aluminum foil is widely used for medicines in the pharmaceutical industry. It consists of a push-through blister, a molded plastic with cavities for the individual tablets, and a push-through closure made of aluminum foil, which is called blister film or lid film.
The blister pack is formed by placing the medicine in a blister or blister of a plastic molded plastic sheet, and then thermally bonding the plastic sheet to the aluminum foil which is printed and coated with a protective agent and a binder. So aluminum foil for blister packaging is also the main aluminum foil in the field of pharmaceuticals.
We provide various types of pharmaceutical aluminum foil of different standards for the global market.

Specification

Alloy: 1235, 8011
Temper: O, H18
Thickness: 0.0065~0.046mm
Tolerance +/-4%
Width: 100~1220mm
Tolerance +/- 1.0 mm
Coil ID: 75, 150

Chemical Compositions

Alloy Fe Si Cu Mn Mg Cr Zn Ni Ti Other Al
Each Total
1235 0.65 0.05 0.05 0.05 - 0.1 - 0.06 0.05 0.15 99.35
8011 0.6~1.0 0.50~0.9 0.1 0.2 0.05 0.05 0.1 - 0.08 0.05 0.15 Remains

Mechanical Properies

Alloy Temper Tensile strength Elongation
8011 H18 >175 MPa >2.5%
1235 H18 >150 MPa >2.5%
8011 O >85 MPa >3.5%

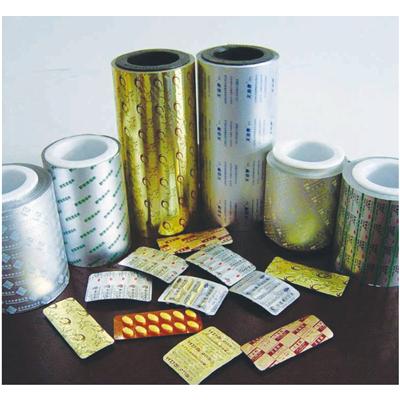

Our aluminum pharmaceutical foils are soft in reel form, one side laminated with film, and other side printing primer coated. These foils can be printed to customers' requirement or un-printed. It is used for strip packing of tablets and capsules. The pharmaceutical foil is laminated to either Low Density Polyethylene or coated with Heat Seal lacquer for sealing. This foil is used in the Pharmaceutical industry for packing tablets and capsules.

Many of aluminium foil’s properties combine to provide user-friendly, safe and versatile packaging formats for pharmaceutical tablets, creams, liquids and powders. Aluminium foil’s excellent barrier properties totally exclude moisture, oxygen and other gases, micro-organisms and light, maintaining degradable products in peak condition over long periods.

Foil comes in a completely sterile condition due to the annealing temperature and final conditioning processes. It is not hazardous to health, and many suppliers offer dedicated ‘clean-room’ printing and laminating or printing and packing facilities to ensure medical standards of sterility.

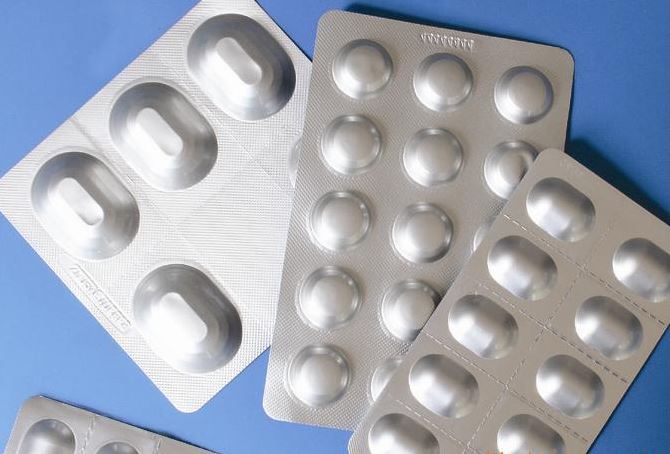

PTP Blister aluminum foil for Pharmaceutical Packaging

 PTP Blister aluminum foil

Main products:

Printing aluminum foil, Non - printing foil
Thickness:0.024mm-0.030mm
Width:80mm-1000mm
Winding diameter:275mm-500mm

Features: Excellent gas resistance, moisture resistance, light resistance. drug resistance, chemical stability,hygiene,
Good heat sealing with PVC, PVDc, in the range of 130°c~200°C.
Structure:OP/Printing ink/Alu/VC Usage:Usually seal with cold aluminum or PVC, PVDC, used in food or medicine packaging:

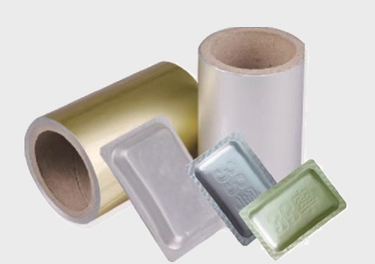

Cold Forming Aluminum Foil

 Cold Forming Aluminum Foil

Product description: Before the bubble cap is independent of each other, it plays a bettereffect of oxygen, light and moisture resistance.
It can be used as a drug packaging material in extreme (high, low and high temperature)environment.
Uses: Used for tablet, capsule and other blister packaging
Structure specification:
OPA 25um/AL 45um/PVC 60um
OPA 25um/AL 50um/Pvc 60um

Thermoforming Foil

 Thermoforming Foil

Product Description: · This product is used as a protective cover for conventional PVc hard sheet thermoforming blister packaging, which is not in direct contact Drugs or food, suitable for high-density drug packaging;
.Excellent performance of avoiding light, moisture-proof, anti-oxidation and gas intrusion;
. It is often based on gold and silver two colors, and the surface can be beautifully printed to achieve the publicity effect.
Uses: Used for capsule, tablet and other aluminum-plastic blister packaging.
Structure specification: OPA 25um/AL 60um/DVC
